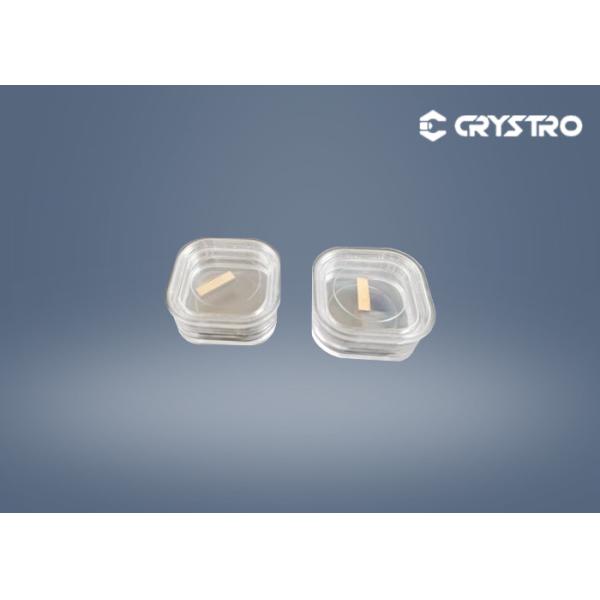

Gold Coated Lithium Niobate Crystals With Nonlinear Effect

  • 1
  • 2

Brand Name : Crystro

Model Number : CR211011-01

Certification : SGS/COC

Place of Origin : China

MOQ : 1pc

Price : USD 20~200/pc

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 2000pcs per month

Delivery Time : 4-5 weeks

Packaging Details : Transparent clean box

Material : Gold Coated Lithium Niobate Crystals With Nonlinear Effect

Crystal Sturucture : Trigonal, Space group R3c, Point group 3m

Melting Point : 1253℃

Origin : China

Shipment : Express,DHL.Fedex

Packing : individual container for each substrate, packed in bag filled with inert gas.

Orientation : Z-cut, Y-cut, Y-cut 36° off, Y-cut 64° off, Y-cut 128° off

Primary Orientation Flat : 22mm+/-2mm (3-inch) 32mm+/-2mm (4-inch)

Contact Now

Gold Coated Lithium Niobate Crystals With Nonlinear Effect

LiNbO3 (Lithium Niobate) crystal is widely used as frequency doublers for wavelength > 1mm and optical parametric oscillators (OPOs) pumped at 1064 nm. Due to its large electro-optic and acousto-optic coefficients.

Gold Coated Lithium Niobate Crystals with electro-optic, nonlinear and piezoelectric property

Lithium niobate (LiNbO3) has excellent electro-optic, nonlinear and piezoelectric properties of its inherent materials. Applications using large electro-optic coefficients of lithium niobate include optical modulation and Q switching at infrared wavelengths. Applications of large nonlinear coefficients using LiNbO3 include optical parametric oscillations, different-frequency mixing to generate tunable infrared wavelengths, and second harmonic generation. Applications using piezoelectric properties include ultrasonic transducers and acoustic surface wave devices.

Crystro provides:

  • LiNbO3 wedges used for fiber optical isolators and circulators.
  • Reliable delivery
  • Strict quality control
  • Technical support
  • Very competitive prices

LiNbO3 Crystal Applications:

1. Pockels Cells
2. Q-switches
3. Phase modulators
4. Surface acoustic wave(SAW) wafers

We can offer:

Product 3" 4" 6" 8" LN wafer Saw/Optical grade
Cut X/Z/Y41°/Y64°/Y128°/YZ/YX or Customized
Curie Temp 1142°C±3°C
Doped with Zn, MgO single or double doped available
Surface

single or double sides polish

(DLP/SLP/ SSP/DSP all available)
Thickness 0.18/0.25/0.35/0.50/1.00 + mm
TTV range < 1~5µm
BOW ± (25µm ~40um )
Warp <= 35µm
LTV (5mmx5mm) <1.5 um
PLTV(<0.5um) ≥98% (5mm*5mm) with 2mm edge excluded
Edge Compl't with SEMI M1.2@with GC800# .regular at C typed
Primary Flats available, per request
Polished side Roughness Ra<=5A
Back Side Roughness Ra:0.5-1.0µm GC#1000
Edge Rounding Compliant with SEMI M1.2 Standard/refer to IEC62276
Cracks, saw marks, stains

None

Gold Coated Lithium Niobate Crystals With Nonlinear Effect
