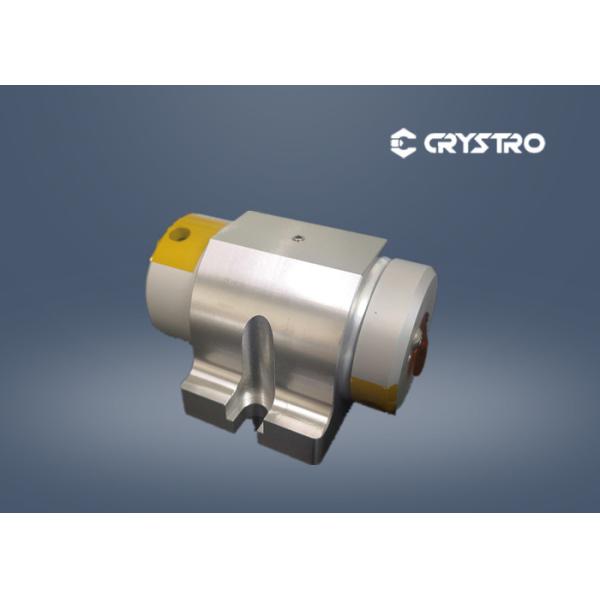

NIR 1030nm Aperture 12mm TGG Optical Fiber Isolator

Brand Name : Crystro

Model Number : CR200918-01

Certification : SGS/COC

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000pcs/month

Delivery Time : 3-4 weeks

Packaging Details : Carton Package

Material : TGG

Isolation : >35dB(esingle)

Aperture : 3mm-12mm

Wavelength : 532nm - 1030nm

Temperature : -20-70℃

Transmission : >93%

Tunable Temperature : 10-30℃

Type : Polarization dependent

Contact Now

High Power Free Space Optical Fiber Isolator

Our Free Space Isolators could maintain the light's linear polarization, through rotating the plane of polarized light 45°in the forward direction and an additional 45°of non-reciprocal rotation in the reverse direction. Crystro free space isolator series include 2 types :Polarization and Polarization Indepent. Meanwhile, free space isolators include fixed wavelength isolators and wavelength adjustable isolators.

Features:

Free space input and output

Isolators are available for optional λ/2 plate

High damage threshold and power handling

Peak Isolation : Range from 30dB to 45dB

Specifications:

UV VIS NIR IR
Center Wavelength 355nm 405-980nm 1030,1064nm 1319,2000,4500nm
Operating Wavelength Range ≥±10nm ≥±10nm ≥±15nm ≥±10nm
Peak Transmission >93% >90% >92% >90%
Peak Isolation >35dB >35dB >30dB >35dB
M2 Degradation <10% <10% <10% <10%
Clear Aperture 3,4mm or others 3,4mm or others 2,3,4,5,8,10,12 or others 3,4mm or others
Optical Power(Average) 1,5,10W or Specify 10,30,50W or Specify 10,30,50,100W or Specify 10,30,50W or Specify
Damage Threshold 3.5J/cm2@ 10ns 3.5J/cm2@ 10ns 10J/cm2@ 10ns 5J/cm2@ 10ns
Storage Temperature Range -20-70℃
Tunable Temperature Range 10-30℃

Applications:

Maintain the light's linear polarizaton

Avoide deleterious effects of back reflectons in laser diodes

Eliminate instability in amplified laser systems caused by ASE

Reduce Nd and Yb oscillations from ASE created by amplifiers
