1064nm 800nm 680nm AR Coating TSAG Optically Active Crystals

  • 1
  • 2
  • 3

Brand Name : Crystro

Model Number : JCR200608-01

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000pcs per week

Delivery Time : 3-4 weeks

Packaging Details : Transparent clean box

Type : TSAG Rod

Diameter : 3inch

Diameter Tolerance : +0/-0.05mm

Length Tolerance : +/-0.2mm

Extinction Ratio : up to 35dB

Surface Quality : 10-5

AR Coating : 405-980nm/1064nm

Wave Front Distortion : <1/8 wave

Contact Now

TSAG Crystals For Faraday Isolator 1064nm 800nm 680nm AR Coating

Description:

TSAG is perfect magneto optical crystal which can be used in visible and infrared wavelength regions. Good thermal and mechanical properties make TSAG very reliable material suitable for next generation fiber lasers. Compared to TGG, TSAG has about 20% higher Verdet constant and about 30% lower absorption at 1064 nm.

Features:

  • Large Verdet constant(48 radT-1m-1 at 1064 nm),about 20% higher than that of TGG;

  • Low absorption(<3000 ppm/cm at 1064 nm),about 30% less than that of TGG

  • High power compliant;

  • Low thermally-induced birefringence;

  • Making the isolator small.

Applications:

  • Faraday isolator based on TSAG crystal for high power lasers

  • Imaging applications:Scintillation properties of TSAG crystal for imaging applications

Main Properties:

Transmittance Range(bulk/uncoated) 400-1600nm
Crystal Structure Cubic,Space group Ia3d
Chemical Formula Tb3Sc2Al3O12
Lattice Parameter a=12.3Å
Growth Method Czochralski
Density 5.91g/cm3
Melting Point 1970℃±10℃

CRYSTRO supply TGG crystal with:

Orientation ±15′
Wavefront Distortion <λ/8
Extinction Ratio >30dB
Diameter Tolerance +/-0.05mm
Length Tolerance +/-0.1mm
Chamfer 0.1mm @ 45°
Flatness <λ/10 at 633nm
Parallelism <3′
Perpendicularity <5′
Surface Quality 10/5
AR coating <0.3% @ 1064nm

Product Tags:

gadolinium gallium garnet



ggg substrate



TSAG Optically Active Crystals

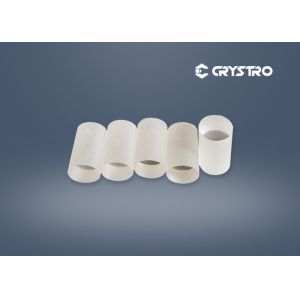

Quality 1064nm 800nm 680nm AR Coating TSAG Optically Active Crystals for sale
